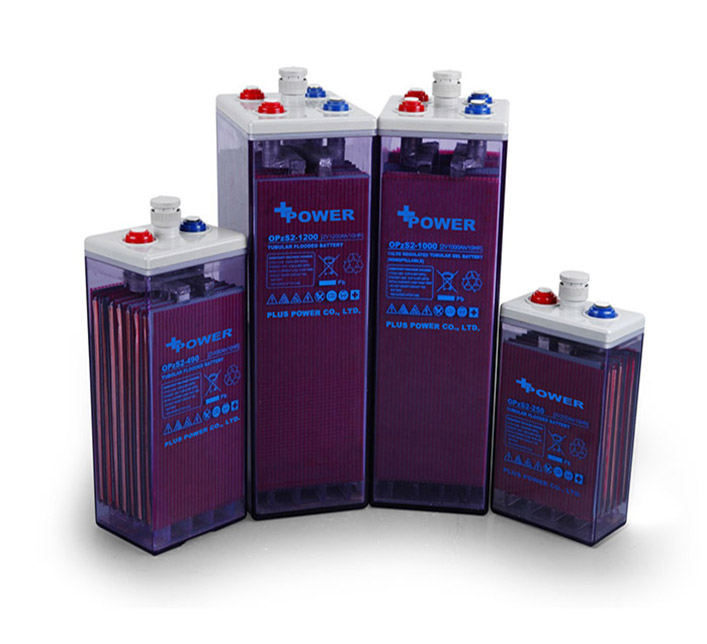

OPzS Series

OPzS batteries

Category Tubular Batteries Tags OPzS batteries, Tubular batteries

+ Voltage: 2V
+ Capacity: 200AH—-3000AH
+ Design life: 20 years
+ Warranty: 3 years

Technical Features:
OPzS series is a flooded Lead Acid battery that adopts Tubular Plate technology to offer high reliability and performance. The
The battery is designed and manufactured according to DIN40736-2/IEC60896-11 standards and with a die-casting positive spine
and patent formula of active material. OPzS series exceeds DIN40736-2/IEC60896-11 standard values with more than 20 years
of floating design life at 25°C and is even more suitable for cyclic use(solar/wind energy, traction, etc) under extreme
operating conditions.

Ask For A Quick Quote

Description

Description

Model	Voltage	Capacity	Inte mal Resistance	Dimensions(mm)				Terminal type	Weight
	Voltage	Capacity	Inte mal Resistance	Dimensions(mm)					Dry	Wet
	(V)	(Ah)	(mQ)	Length	Width	Height	Total height		±4%(Kg)	±4%(Kg)
OPzS2-200	2	200	0.9	103	206	355	410	T20	12.8	17.5
OPzS2-250	2	250	0.8	124	206	355	410	T20	15.1	20.5
OPzS2-300	2	300	0.7	145	206	356	413	T20	17.5	24
OPzS2-350	2	350	0.65	124	206	471	528	T20	19.8	27
OPzS2-420	2	420	0.58	145	206	471	528	T20	23	32
OPzS2-500	2	500	0.5	166	206	471	528	T20	26.2	38
OPzS2-600	2	600	0.45	145	206	646	703	T20	35.3	47
OPzS2-770	2	770	0.37	210	254	471	528	T20	45	60
OPzS2-800	2	800	0.35	191	210	646	703	T20	48.2	64
OPzS2-1000	2	1000	0.28	233	210	646	703	T20	58	78
OPzS2-1200	2	1200	0.23	275	210	646	703	T20	67.8	92
OPzS2-1500	2	1500	0.21	275	210	795	852	T20	81.7	112
OPzS2-2000	2	2000	0.17	399	214	770	827	T20	119.5	150
OPzS2-2500	2	2500	0.13	487	212	770	827	T20	152	204
OPzS2-3000	2	3000	0.11	576	212	770	827	T20	170	230
