Description

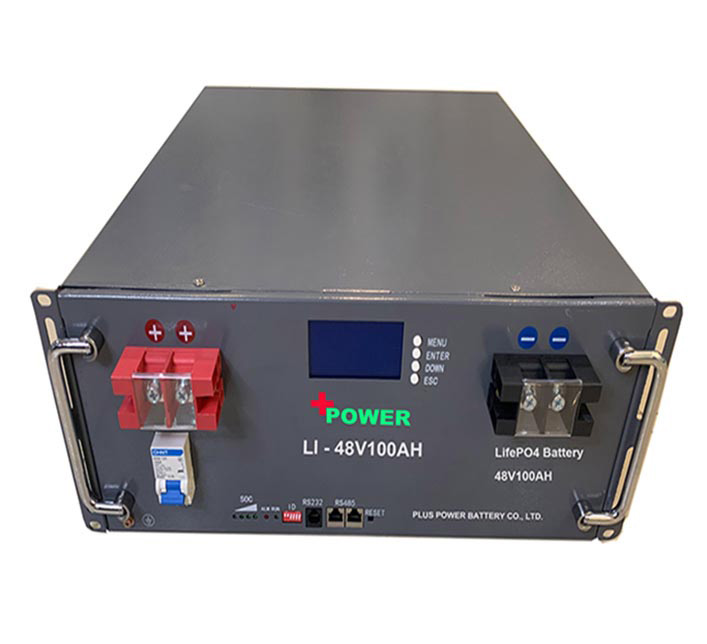

| Details | LI-48V100AH | LI-48V150AH | LI-48V180AH | LI-48V200AH | LI-48V240AH |
| Appearance | Metal case | Metal case | Metal case | Metal case | Metal case |
| Nominal Voltage | 48V | 48V | 48V | 48V | 48V |
| Ah Capacity | 100Ah | 150Ah | 180Ah | 200Ah | 240Ah |
| Pack Dimension | 442*450*133mm | 442*520*155mm | 442*520*155mm | 442*520*230mm | 442*520*230mm |
| Energy Density | 4800Wh | 7200Wh | 8640Wh | 9600Wh | 11520Wh |
| Weight | 49Kg | 65Kg | 80.5kg | 80.5kg | 102 kg |
| Efficiency | >99.5% | >99.5% | >99.5% | >99.5% | >99.5% |
| Self Discharge/month | <3% | <3% | <3% | <3% | <3% |
| Design life(year) | >20 | >20 | >20 | >20 | >20 |
| Parallel connection | <15 | <15 | <15 | <15 | <15 |
| BMS Control | Yes | Yes | Yes | Yes | Yes |
| Protocol | RS-485 | RS-485 | RS-485 | RS-485 | RS-485 |
| Datalogger record and store | in real time | in real time | in real time | in real time | in real time |
| Charge Voltage | 48-54V | 48-54V | 48-54V | 48-54V | 48-54V |
| Working Tem. Range | -20~60°C | -20~60°C | -20~60°C | -20~60°C | -20~60°C |
| Working Humidity Range | 5-95% | 5-95% | 5-95% | 5-95% | 5-95% |
| Max Continuous Discharging Current | 100A | 150A | 180h | 200h | 240h |
| Max Continuous Charging Current | 100A | 150A | 150A | 150A | 150A |
| Discharge output Inernal Resistance | <10mOhm | <10mOhm | <10mOhm | <10mOhm | <10mOhm |
| Running Power Consumption | <30mA | <30mA | <30mA | <30mA | <30mA |
| Static Power Consumption | 10-50uA | 100-50uA | 100-50uA | 100-50uA | 100-50uA |
| BATTERY CELL SPECIFICATION | |||||
| Cell Capacity | 100Ah | 150A | 180A | 200A | 240A |
| Cell Charge Voltage | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V |
| Cell Max Continuous Discharge Current | 300 or 3C | 300 or 3C | 300 or 3C | 300 or 3C | 300 or 3C |
| Cell Standard charge and discharge current | 50 or 0.5C | 50 or 0.5C | 50 or 0.5C | 50 or 0.5C | 50 or 0.5C |
| Cycles life | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles | 6000 cycles |
| Case Materials | Matel | Matel | Matel | Matel | Matel |
| Case IP rating | IP56 | IP56 | IP56 | IP56 | IP56 |
| Cell Type- Chemistry | LifePO4 | LifePO4 | LifePO4 | LifePO4 | LifePO4 |
| Cell Type | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic |
| Temperature Specification | |||||
| Discharge Temp | -20 to 60°C | -20 to 60°C | -20 to 60°C | -20 to 60°C | -20 to 60°C |
| Charge Temp | 0 to 55°C | 0 to 55°C | 0 to 55°C | 0 to 55°C | 0 to 55°C |
| Storage Temp | -30 to 60°C | -30 to 60°C | -30 to 60°C | -30 to 60°C | -30 to 60°C |
| BMS High Temp Cut off | 80C | 80C | 80C | 80C | 80C |
| BMS Reconnect Temp | 50C | 50C | 50C | 50C | 50C |
| IP | 40 | 40 | 40 | 40 | 40 |
